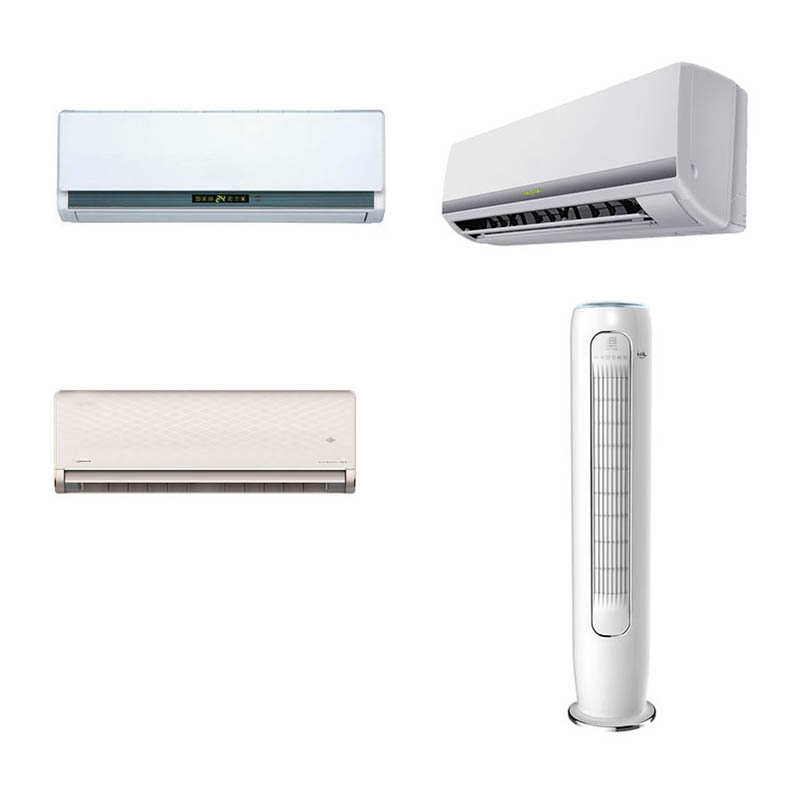

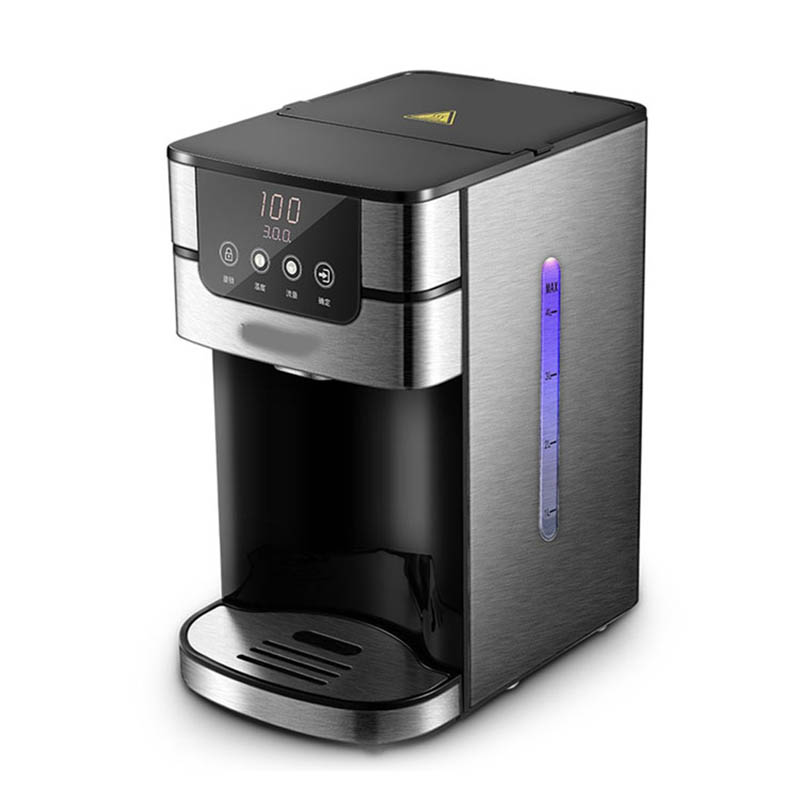

Home appliances include: water dispenser, air conditioner, electric fan, TV set, DVD, Audio, Vacuum cleaner, router, Camera, Sweeping robot, Smart trash can, LED mirror, Smart clothes drying rack, set top box, alphabet telephone, hole punch, Electric transfer, Smart switch, foot cover machine.

Home appliances molds

P&M is a mold factory with 23 years of experience in Home appliances molds. We can achieve the desired product effects through injection molds, blow molds, rotational molds, and die-casting molds. At the same time, we have two factories, both of which cover an area of more than 5,000 square meters. We have sufficient equipment and professional engineers to fully meet all customer needs. We can make molds and produce plastic products. We also have a complete supply chain and production line to meet all customer requirements.

In terms of product materials, most of the shells of Home appliances are made of V0-grade flame-retardant ABS material because they need to be in contact with electricity. However, the external shell is also made of PP material because PP material is very durable. For example, the shell of the air conditioner is made of PP material, and it is non-toxic and harmless. We choose the most suitable material for the material according to the actual function. We have a complete supplier of raw materials. We can provide any material that the customer wants.

In terms of design, Home appliances require that the parts cooperate very well. The perfect cooperation and assembly between the parts have a great effect on the quality of the product. For example, the foot massage uses a curved surface design. The lower part of the air conditioner shell is closely matched with the lower parts, making the appearance quality very high. At the same time, different designs are very important for the role of the product. For example, parts such as electric fans are very convenient and comfortable to use. The curved surface design combined with the structure of the human hand makes it more convenient for people to use the product. We have unique insights into design and we can meet the curve and surface requirements that customers want.

In terms of mold materials, it depends on the product structure, product quantity and customer budget requirements. If the structure is relatively simple, we can use P20 and 718 mold materials, and the mold life can reach 150,000-300,000 sets. For some complex and special structures, we need to use S136 or H13 mold materials, and the mold life can reach 500,000-100 sets. We will provide the best and most suitable mold material selection, so that customers can use the most suitable budget to make the most satisfactory product effect.

The services we provide are all one-stop services, 1. Product design-2. 3D drawing production-3. CNC sample testing/3D printing testing-4. Mold production-5. Product production-6. Product packaging-7. Product transportation. We are a complete supply chain that can meet the needs of all customers.

Home appliances mold Description

We can fully meet customer requirements

1.automatically.

2. suitable for high speed injection.

3. long mold life.

Mold Cavity： 1 cavity-4cavity-8cavity ,depend on Customer demand

Mold Size: 800x800x980mm，,depend on Customer demand

Suitable Machine: 450T- 1150T

Mold Main Material: P20 718HH H13 S136 2738

Mold Injection System: 1 point spin-point gate

Mold Ejection System: Stripper plate from the injection side

Mold Cycle Time: 15- 30 Seconds

Mold Running: 800K

Delivery Time: 25 working days
